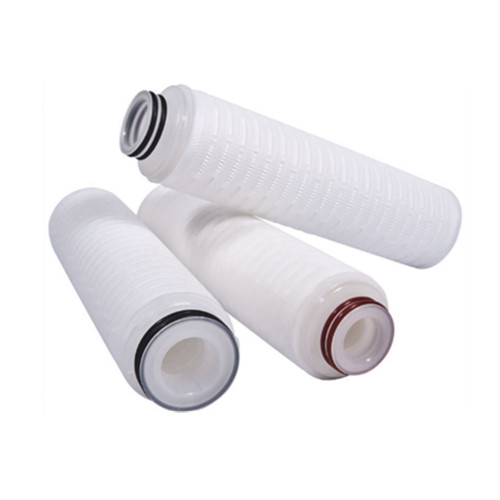

| Name: | Double layer PES Filter Cartridge |
|---|---|
| Filter Media: | Double layer PES |
| Core: | PP or Stainless Steel Lining |
| Cage: | PP |
| End Cap: | Silicone,EPDM,Viton,Tev |
| Out Diameter: | 69mm |
| Inner Diameter: | 28mm |
| Pore Size: | 0.22+0.1um,0.22+0.22um,0.45+0.22um |
| Length: | 10",20",30",40" |
| Configuration: | DOE,226/Fin,226/Flat,222/Fin,222/Flat |
| Maximum Operating Temperature: | 85℃ |
| Maximum Differential Pressure: | 4.2bar @23℃ |
PRODUCT DESCRIPTION
Double layer PES membrane cartridges are made of imported polyethersulphone(PES).Its upstream and downstream polyester support ensures resistance to pressure shocks.Adapters are thermally welded with media without using any glue or adhesives to prevent any possibility of pollution. PES membrane allows easy integrity testing for all applications.
Applications:
Food&BeveragePharmaceuticals
Microelectronic
Water treatment
Chemical industry
Features:
Absolute EfficiencyLow protein binding
No fiber migration
Thermally welded construction
High dirt holding capacity
Full bacterial retention

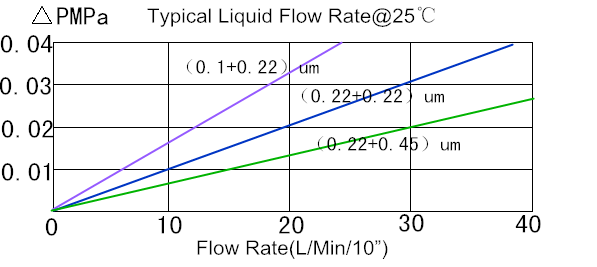

Flow Rate vs Differential Pressure

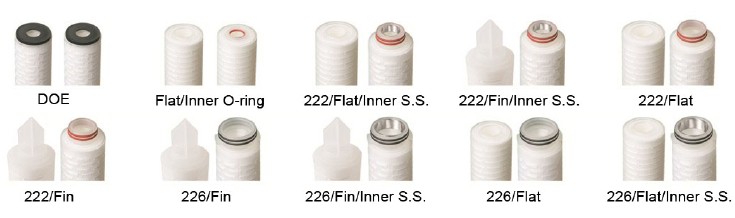

Configuration
