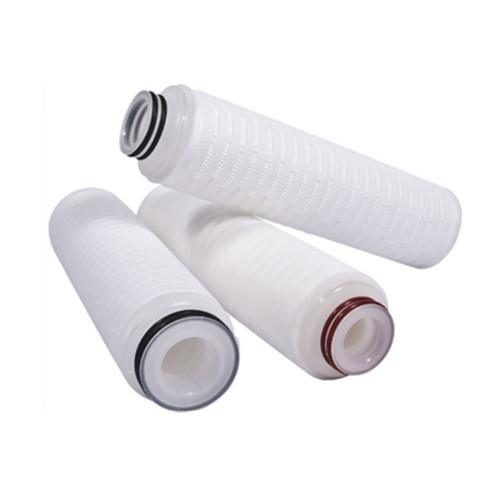

Name:PP Pleated Cartridge Filter
Filter Media:PP
Core:PP or Stainless Steel Lining
Cage:PP
End Cap:Silicone,EPDM,Viton,Tev
Out Diameter:69mm
Inner Diameter:28mm
Pore Size:0.1,0.2,0.45,1,3,5,10,20,40Micron
Length:5",10",20",30",40"
Configuration:DOE,226/Fin,226/Flat,222/Fin,222/Flat
Maximum OperatingTemperature:85℃
Maximum Differential Pressure:Forward: 4.2bar@23℃

PRODUCT DESCRIPTION

Polypropylene(PP) pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micron ratings, high flow rates and high contaminant holding capacities.These cartridges are manufactured and assembled in a clean room environment to minimize the possibility of contamination. Polypropylene offers an wide chemical compatibility making it suitable for many applications.

Applications:

Food&Beverage
Pharmaceuticals
Pre-filtration for RO
Oil&Gas
Water treatment
Chemical industry

Features:
High flow rate&low pressure drop
0.1um to 40um ratings
No fiber migration
Thermally welded construction
Efficiency filtration area more than 0.5m²/10" filter

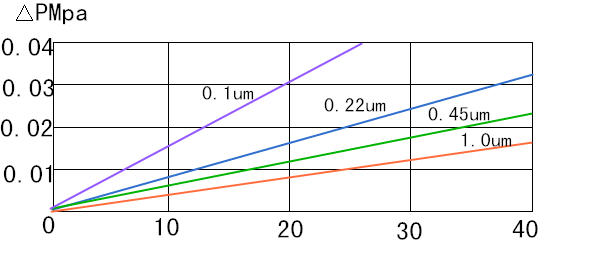

Pressure Drop vs Flow Rate @ 25℃


                                    Flow rate(L/min/10")

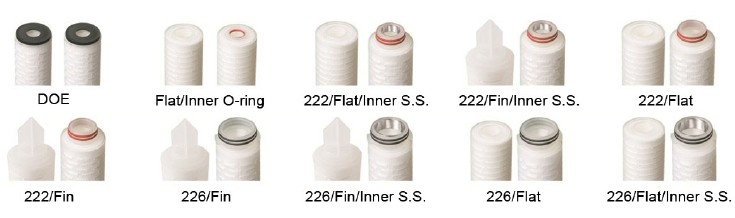

Configuration:
