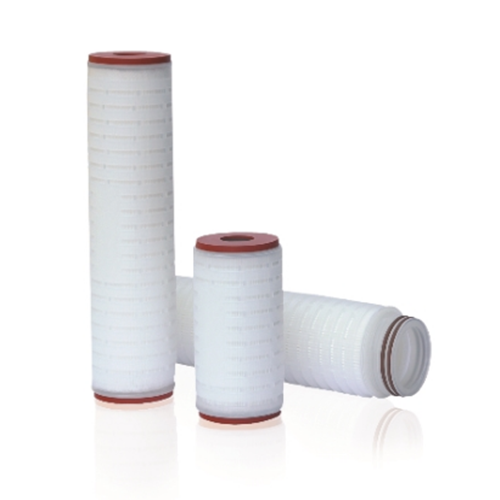

| Name: | PES Filter Cartridge |
|---|---|
| Filter Media: | PES |
| Core: | PP or Stainless Steel Lining |
| Cage: | PP |
| End Cap: | Silicone,EPDM,Viton,Tev |
| Out Diameter: | 69mm |
| Inner Diameter: | 28mm |
| Pore Size: | 0.1,0.2,0.45,0.65,1.2Micron |
| Length: | 10",20",30",40" |
| Configuration: | DOE,226/Fin,226/Flat,222/Fin,222/Flat |
| Maximum OperatingTemperature: | 85℃ |
| Maximum Differential Pressure: | 4.2bar @23℃ |
PRODUCT DESCRIPTION
PES cartridges is made of imported polyethersulphone(PES).Its upstream and downstream polyester support ensures resistance to pressure shocks.Adapters are thermally welded with media without using any glue or adhesives to prevent any possibility of pollution. PES membrane allows easy integrity testing for all applications.
Applications:
Food&Beverage
Pharmaceuticals
Features:
Absolute Efficiency

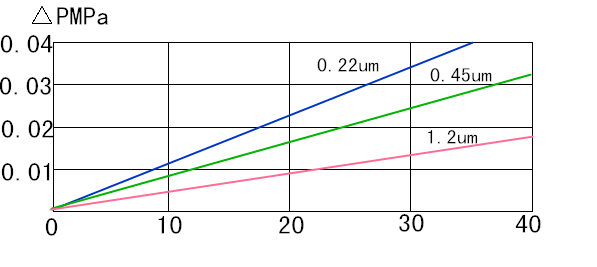

Flow Rate vs Differential Pressure @25℃
Flow Rate(LPM/10")
Configuration
