Your Location: Home >> Product Center >> PTFE Pleated Filter Cartridge >> PTFE Pleated Cartridge Filter

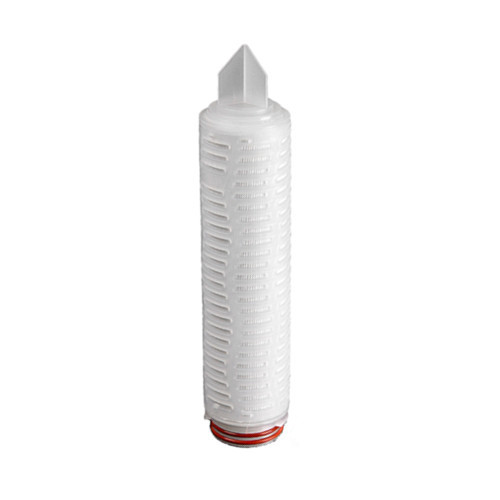

| Name: | PTFE Pleated Cartridge Filter |
|---|---|
| Filter Media: | PTFE |
| Core: | PP or Stainless Steel Lining |
| Cage: | PP |
| End Cap: | Silicone,EPDM,Viton,Tev |
| Out Diameter: | 69mm |
| Inner Diameter: | 28mm |
| Pore Size: | 0.01micron for gas,0.1,0.2,0.45,1,3,5micron for liquid |
| Length: | 5",10",20",30",40" |
| Configuration: | DOE,226/Fin,226/Flat,222/Fin,222/Flat |
| Maximum OperatingTemperature: | 85℃ |
| Maximum Differential Pressure: | Forward: 4.2bar@23℃ |
PRODUCT DESCRIPTION
PTFE cartridges are made of natural hydrophobic polytetrafluroethylene(PTFE).They are specially designed for sterile filtration of liquid,air&gas. PTFE is characterized by high chemical inertness.
Applications:
Food&BeveragePharmaceuticals
Air&Gas
Water treatment
Chemical industry
Features:
High flow rateNo fiber migration
Thermally welded construction
Excellent chemical resistance

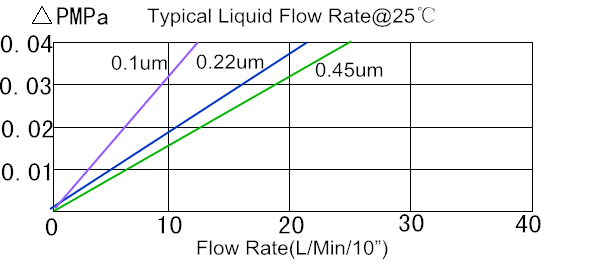

Pressure Drop vs Flow Rate
Configuration:
