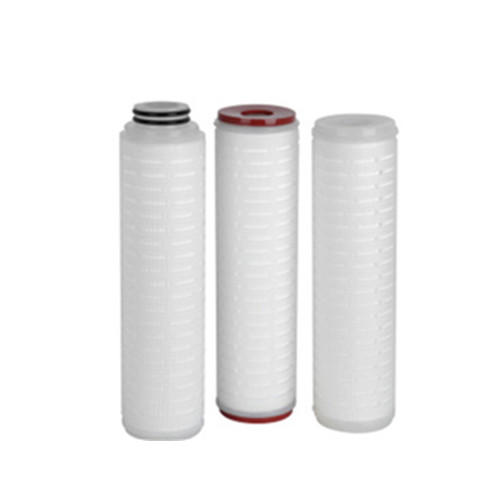

| Name: | NYLON Filter Cartridge |
|---|---|
| Filter Media: | NYLON |
| Core: | PP or Stainless Steel Lining |
| Cage: | PP |
| End Cap: | Silicone,EPDM,Viton,Tev |
| Out Diameter: | 69mm |
| Inner Diameter: | 28mm |
| Pore Size: | 0.1,0.2,0.45,1,3,5Micron |
| Length: | 10",20",30",40" |
| Configuration: | DOE,226/Fin,226/Flat,222/Fin,222/Flat |
| Maximum OperatingTemperature: | 85℃ |
| Maximum Differential Pressure: | 4.2bar @23℃ |
PRODUCT DESCRIPTION
NYLON cartridges is made of N6 media.Adapters are thermally welded with media without using any glue or adhesives to prevent any possibility of pollution.
Applications:
Food&BeveragePharmaceuticals
Microelectronic
Water treatment
Chemical industry
Features:
Absolute EfficiencyHigh flow rate&low pressure drop
No fiber migration
Thermally welded construction
Ultrapure water washed

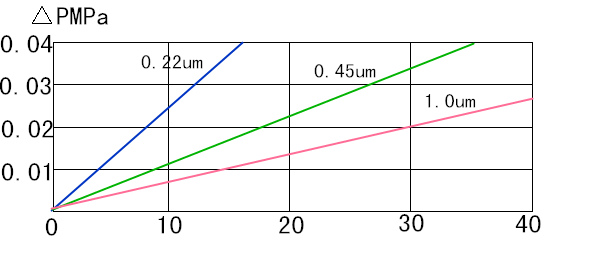

Flow Rate vs Differential Pressure @25℃
Flow Rate(LPM/10")
Configuration
